Power metering and monitoring system for AC and DC electrical installations



DIRIS Digiware
Measurement and monitoring system for electrical installations

The DIRIS Digiware system is a hub of technological innovations that revolutionises the world of measurements, bringing a high degree of flexibility to installations and making connection and configuration easy.
These innovations, together with unrivaled performance in terms of accuracy and functionality, make DIRIS Digiware the most effective solution for metering consumption, measuring and monitoring the quality of electrical energy in industrial and commercial applications

DIRIS Digiware
Power monitoring, accessible everywhere, for everyone

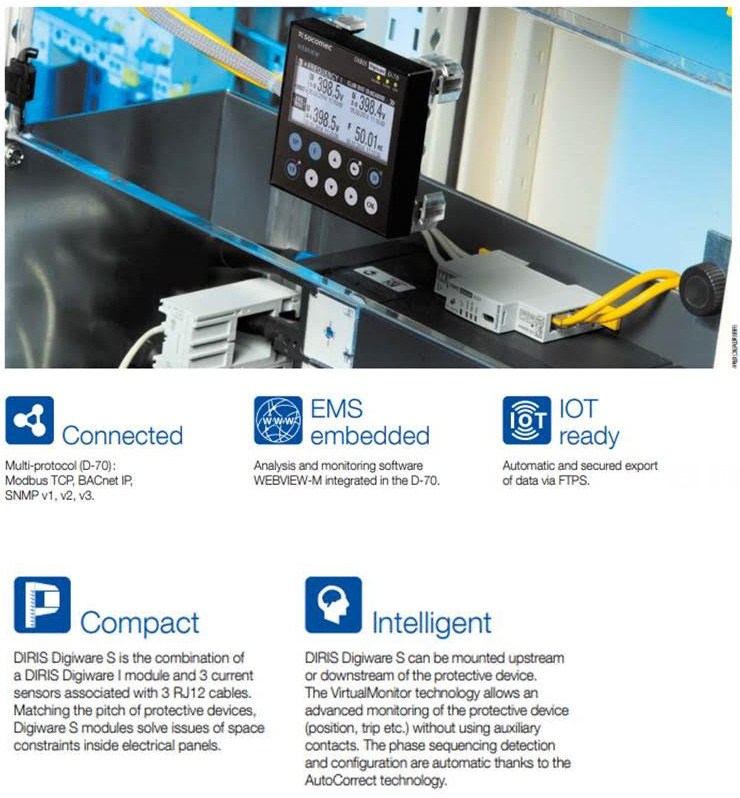

Groundbreaking technologies for greater simplicity and performance* The DIRIS Digiware system is a hub of technological innovations that revolutionises the world of electrical measurement, bringing a high degree of flexibility to installations and making connection and configuration easy. These innovations, together with unrivalled performance in terms of accuracy and functionality, make DIRIS Digiware the most effective solution for metering consumption, and for measuring and monitoring the quality of electrical energy in industrial and commercial applications.

Flexible

• First measurement system that is 100% customisable and scalable.
• Complete Socomec solution: from the power monitoring devices to the current sensors, including the visualisation and analysis software
• Compatible and interoperable ecosystem.

Accessible to all

• For the measurement of AC and DC loads.
• Use one measurement system from the main incomer to branch circuit monitoring and DC loads.
• Implementation in a quarter of the time for multi-point measurement.

Powerful & innovative

• RJ45 interconnection of modules (Digiware bus).
• Fast RJ12 current sensor connection.
• The best compactness/performance ratio of the market: Digiware S embeds the power monitoring function and 3 current sensors all in one.

Groundbreaking technologies for greater simplicity and performance*


It is suitable for both new and existing installations

The construction of DIRIS Digiware is based on several key elements: control and power interfaces with and without DIRIS Digiware D and C displays, DIRIS Digiware U voltage modules, DIRIS Digiware I current modules and a wide range of current sensors, among which are the TE-series current sensors, the TR-series split-core current sensors, and the TF series flexible (Rogov) current sensors. The reduced module size, the various formats of current sensors, and the many connectivity accessories make the DIRIS Digiware system suitable for even installations in the most confined spaces. It can easily be integrated into an existing installation. Electricity quality monitoring features make it easier to predict electrical faults and the display provides fast readout of information.

DIRIS Digiware is flexible and offers shared features such as:

Common display.

• One reference voltage for the whole system.
• One extra power supply. Installation of components near the load
• Modules and sensors can be installed at the closest point to the measured values
• Eliminate dangerous voltage on the doors of the Compact Design panels
• Compact modules for voltage and current (1 to 2 modules).
• System suitable for integration into existing installations with limited space.
• Wide selection of current sensors
• Walkways, with a split core or Rogovski coil
• Different sizes and shapes
• A variety of accessories that allow the system to be installed in any panel

Plug & Play

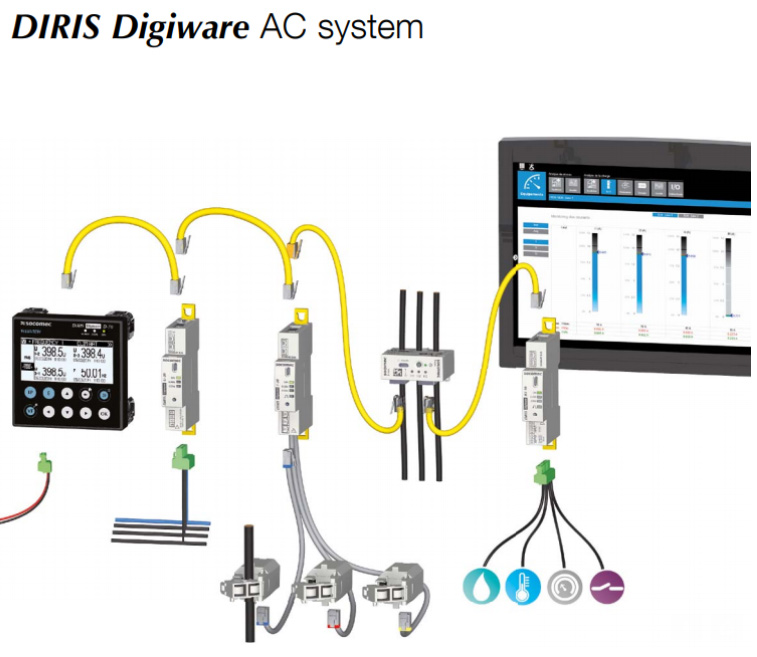

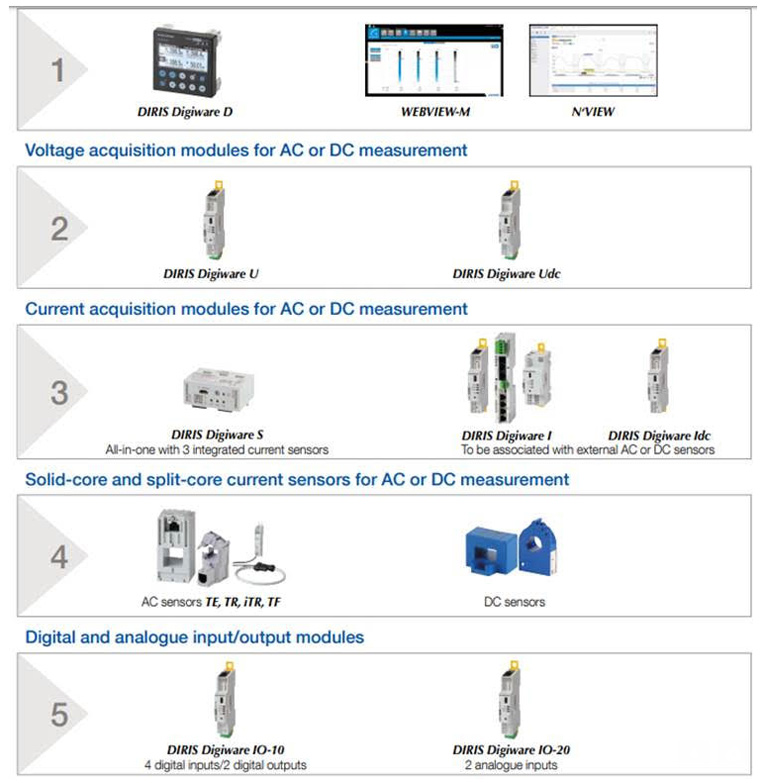

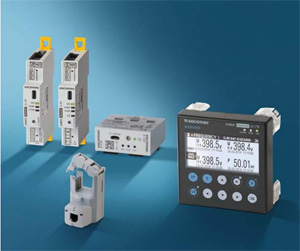

The system is composed of several modules: control interface, voltage acquisition module, current acquisition modules but also closed, split-core or flexible current sensors.

The system offers key technological advances, starting with easy and flexible installation (Plug & Play) and high performance in electrical energy measurement. It should also be noted that thanks to the 3 types of sensors, the system can be adapted to both new and retrofit installations.

The DIRIS Digiware system can be used in different sectors, such as industry, the service sector or even in data centres.

A single point of access to AC and DC measurement data


Input / output modules

DIRIS Digiware IO The DIRIS Digiware IO input/output modules enrich the measurement system with multiple features. The IO-10 modules have 4 digital inputs and 2 digital outputs, which can be used:

• To monitor the position of protective devices and pull-out drawers (open/closed, trip).
• To monitor changes of status of an input.
• To collect pulses from multi-fluid meters (water, gas…).
• To remotely command devices by sending a digital output signal. The IO-20 modules have 2 analogue inputs allowing:
• To collect data from analogue sensors, e.g. pressure, humidity, temperature, levels (fuel…).
• To access via communication the measurements from devices with analogue outputs.
• To monitor levels by setting up alarms on chosen thresholds.

WEBVIEW - energy server solution embedded in the communication gateways

SOCOMEC’s communication gateways centralise the measurement data from both DIRIS Digiware AC and DC systems. They embed the WEBVIEW software solution for visualisation and analysis of real time and historical measurements from a large number of connected devices.
