MWM TCG 2016 V08, V12, V16 Gas Engine – Efficiency across the board!
Compelling arguments – Features at a glance
-

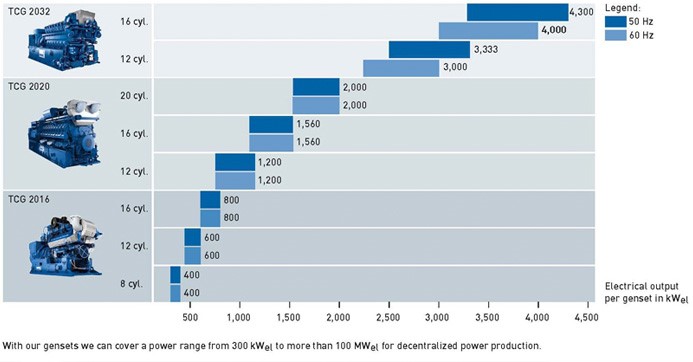

Output range from 400 to 800 kWel
-
High Flexibility
-
Runs on all gas types: natural gas, biogas, landfill gas, sewage gas, mine gas, etc.
-
Mainly used for biogas plants and small CHP plants in Europe
-
Highest electrical efficiency in the output range up to 1,000 kWel
-
More than 1900 power generators with approximately 1,000,000 kWel already installed around the globe
-
Low installation and operating costs
-
Consumes up to 15 Percent Less Gas than Comparable Gensets Thanks to Its Best-of-Class Efficiency
-
Special piston variants with different compression for biogas and natural gas operation
-
Optimized gas exchange and camshaft, spark plugs with integrated pre-combustion chamber
-
Even load balancing over the individual cylinders enables higher load level and maximum utilization of the engine reserves in terms of output and efficiency
-
New closed crankcase ventilation optimizes combustion and increases efficiency by utilizing the blow-by gas
-
Consistent downsizing of dead spaces improves complete combustion of the gas mixture, resulting in reduced fuel consumption and HC- and CO-emissions and higher efficiency
Long Service Intervals
-
Longest time interval until major overhaul compared to competitors
-
Use of Xchange components enables time savings of up to 75 percent during the major overhaul, resulting in reduced costs
-
Turbocharger for TCG 2016C series, depending on application with water-cooled bearing housing, thus reducing maintenance costs for turbocharger
-
No contamination of the turbocharger compressor thanks to improved separation of gas and liquid phase, resulting in long maintenance intervals
Very Low Lubricant Consumption
Natural gas applications, NOx ≤ 500 mg/Nm3 *
TCG 2016 V08 C TCG 2016 V12 C TCG 2016 V16 C
Engine type 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
Electrical output kW 400 400 600 600 800 800
Thermal output ± 8% kW 427 445 654 675 854 886
Electrical efficiency % 42.3 41.4 42.0 41.3 42.5 41.6
Thermal efficiency % 45.2 46.0 45.8 46.5 45.3 46.3
TCG 2016 V12 C_515
Engine type 50 Hz
Electrical output kW 515
Thermal output ± 8% kW 513
Electrical efficiency % 43.2
Thermal efficiency % 43.1
Biogas, landfill gas, and sewage gas applications, NOx ≤ 500 mg/Nm3 *
TCG 2016 V08 C TCG 2016 V12 C TCG 2016 V16 C
Engine type 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
Electrical output kW 400 400 600 600 800 800
Thermal output ± 8% kW 393 415 593 632 788 827
Electrical efficiency % 42.8 41.6 42.7 41.4 42.8 41.7
Thermal efficiency % 42.0 43.1 42.2 43.6 42.2 43.2
* 5% O2 and dry exhaust gases
