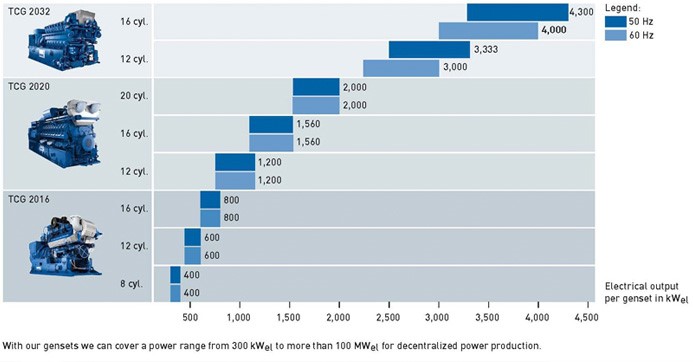

The MWM gas engines of the TCG 2020 series are perfectly geared to the challenges of a dynamic market environment. Our models in the output range of 1,000 – 2,000 kWel meet the high requirements of a broad range of applications and guarantee efficiency, reliability, flexibility and environmental sustainability, together with low lifecycle costs and high profitability.
TCG 2020 – High Profitability Thanks to High Efficiency
-
Improvements of the intake duct and spark plug provide higher efficiency compared to predecessor model
-
Miller valve control times increase genset efficiency
TCG 2020 V12 (1.0) – Increased Efficiency and Extended Useful Life in the 1 MWel Capacity Range
-
For all natural gas and biogas applications in countries with 50 Hz networks
-
Longer maintenance intervals for all natural gas applications extend useful life by two years
-
Optimized electrical efficiency of 43 percent (under ISO conditions) for natural gas applications
-
Optimized lubricant management
-
Lower internal consumption through higher mixture cooler temperatures for natural gas applications
TCG 2020K – Optimized for Isolated Operation and Non-ISO Conditions
-
Load response in only seven steps
-
Fast and reliable supply in the event of grid failures or in isolated operation
-
Special 1,000 kWel variant available for high altitude setup and different intake air temperatures
Higher Efficiency and Lower Pollutant Emissions
-
Smaller dead spaces in combustion chamber ensure more complete combustion
-
Reduced fuel consumption and CO and HC emissions
-
This enables gas savings of up to 15 percent a year and increases the profitability of the plant
Higher Efficiency and Long Maintenance Intervals
-
Effective crankcase ventilation increases efficiency by utilizing the returned combustible blow-by gas
-
Optimized blow-by return and improved separation of the gas phase and liquid phase enable longer maintenance intervals for the turbocharger thanks to the clean intake air
K Editions: Maximum Output at Low Costs
-
Improved output capacity of TCG 2020K under non-ISO conditions and excellent load response through optimum turbocharger design with broad performance map
-
New turbocharger TCR 16 for TCG 2020 with water-cooled bearing housing eliminates need for separate maintenance stages for the turbocharger
-
TCG 2020 K1 is a for 1000 kWel optimized version of the TCG 2020 K gas engine with a focus on high efficiency at low cost of investment
-
Product Brochure: https://issuu.com/mwm_energy/docs/mwm_lb_tcg_2020_en
