Изложба за енергийна ефективност и възобновяеми енергийни източници за Югоизточна Европа 2017
Изложението показва съвременните решения за спестяване на енергия и за производство на възобновяема енергия. Това е място за създаване на нови контакти и за избор на екологични и рентабилни технологии, приложими във всяка индустрия и община. То кореспондира с последните световни тенденции и ще представи енергийно ефективни решения, системи за съхранение на енергия, технологии за производство на био-, хидро-, соларна-, геотермална и вятърна енергия, енергия от отпадъци, иновации в областта на електромобилната индустрия.
Снимки на продукта:
General information

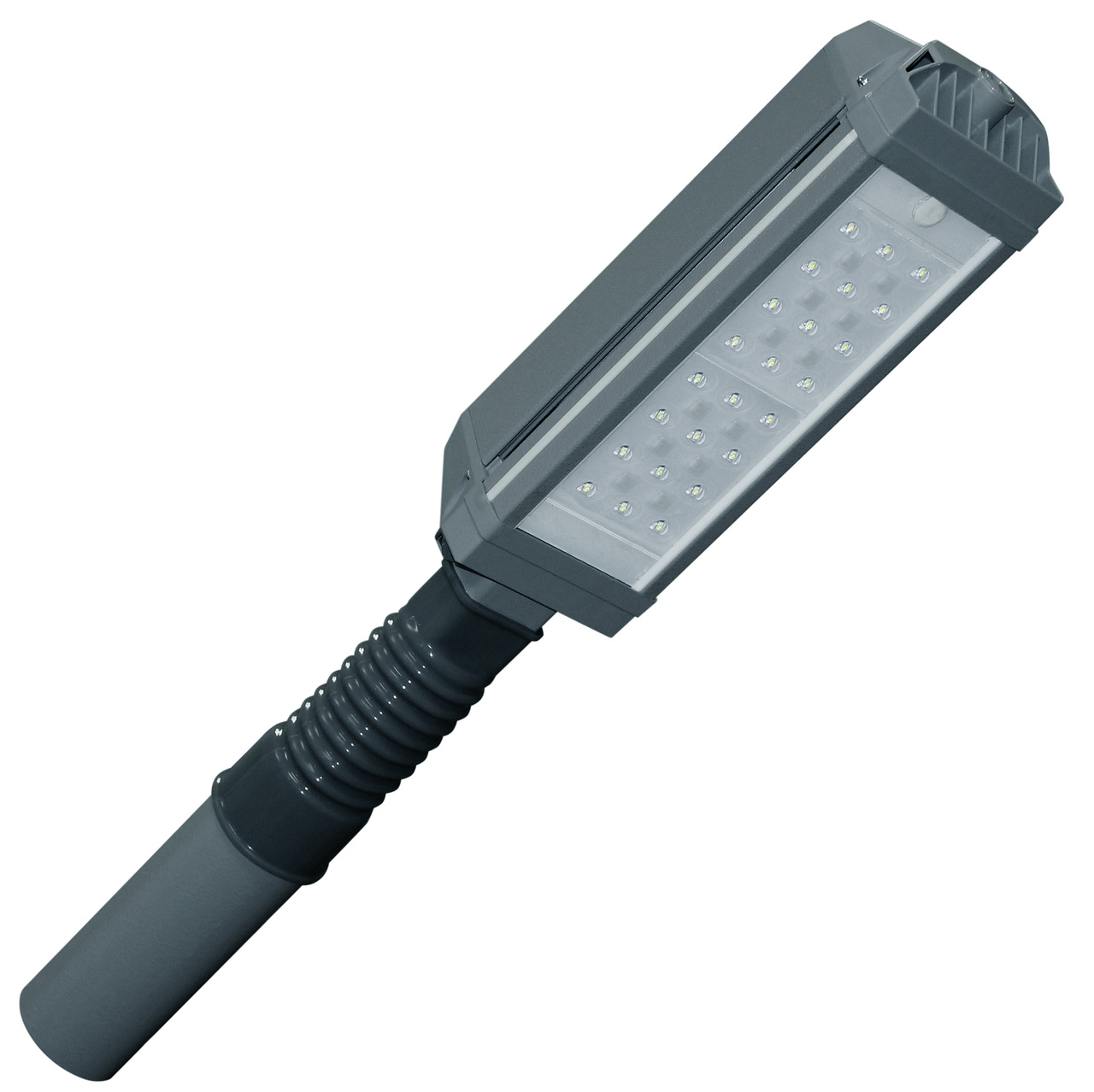

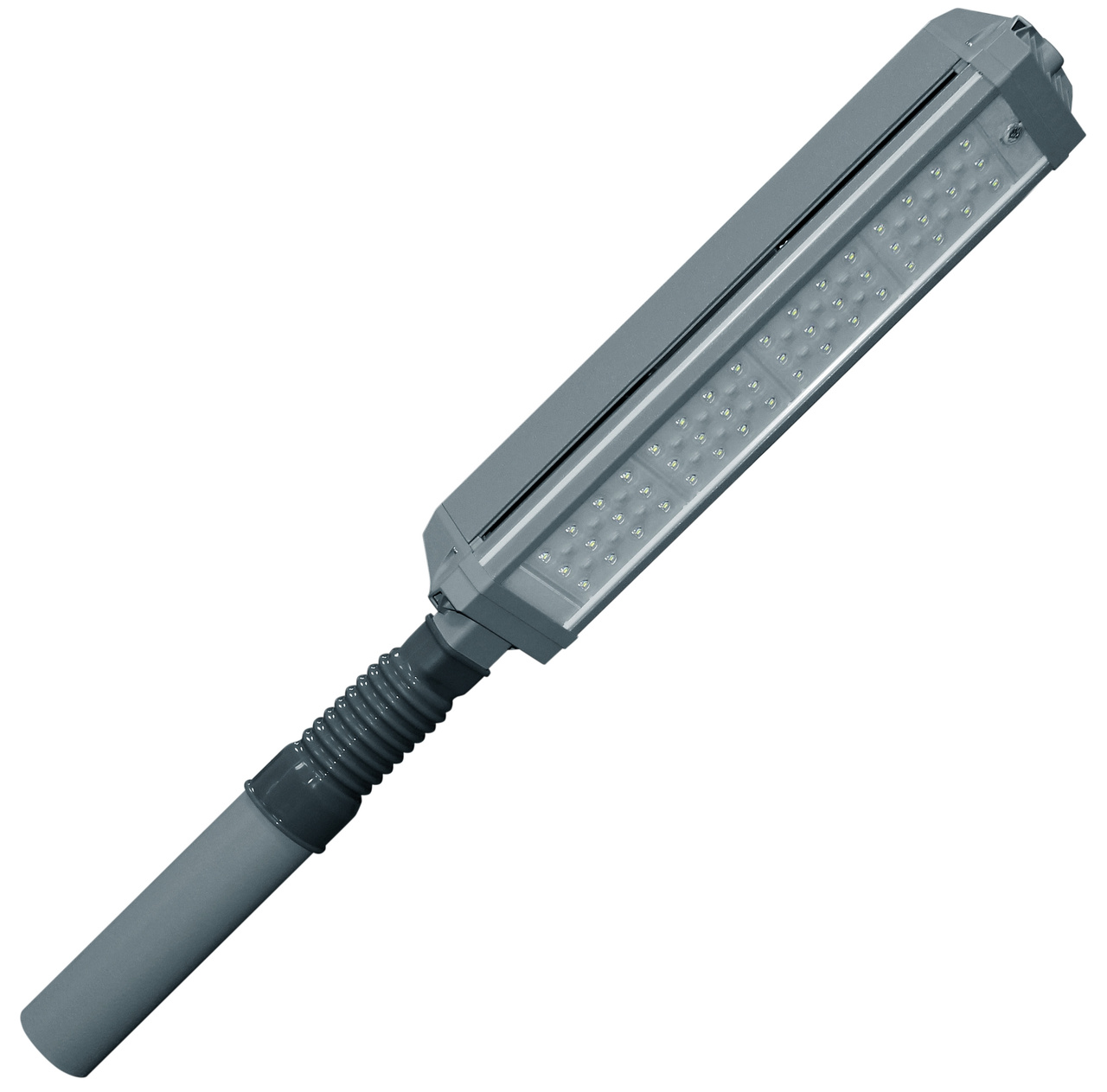

Road LED luminaires are an efficient substitute of luminaires with mercury and sodium lamps. All types of
our luminaires meet the requirements for roads of all categories.
Weather-resistant powder-coated aluminum housing.
Innovative heat sink design for efficient heat dissipation.
High-efficacy LEDs from the leading world manufacturers Osram and Cree.
Applications
• R oads of the A, B & C categories
(controlled-access highways/motorways,
single and dual carriageways)
• Industrial estates and warehouses
• Tunnels
• Railway stations and tracks
• 1.5-3 times lower energy consumption compared to
luminaires with similar flux that use sodium and mercury
lamps
• Different beam angles due to a modular lens design,
including asymmetric wide beam for required illuminance
on a maximum surface
• No light flicker harmful for eyes
• No specific requirements for disposal
• Double protection of LEDs with Zener diodes and PLEDs
to guarantee continuous operability
• Input voltage up to 305V
• Integrated surge protection up to 10kV (optional)
• Extruded aluminium housing with a flat and even top
to protect it from debris accumulation (foliage, birds
droppings) — the temperature performance of the
luminaire is not affected
• LED modules are water- and dust-proof which ensures no
loss in lumen output
• P atented «floating» design of LED modules without
screws — to even off thermal expansion ratios of a
housing, LED boards and lenses
• P ower supply in the MAG4 series is thermally isolated
from the LED module so that its temperature doesn't
affect LEDs, and vice versa. It translates into a longer
lifetime of a PSU and a luminaire in general. Besides,
a PSU is fixed at the bottom of its compartment — to
protect it from overheating in tropical climates where
some parts of a luminaire, even in off mode, can be
heated up to 80°C in direct sunlight
• MAG3 and MAG4 efficacy 125-135 lm/W; lifespan of LED
modules over 100,000 hrs
